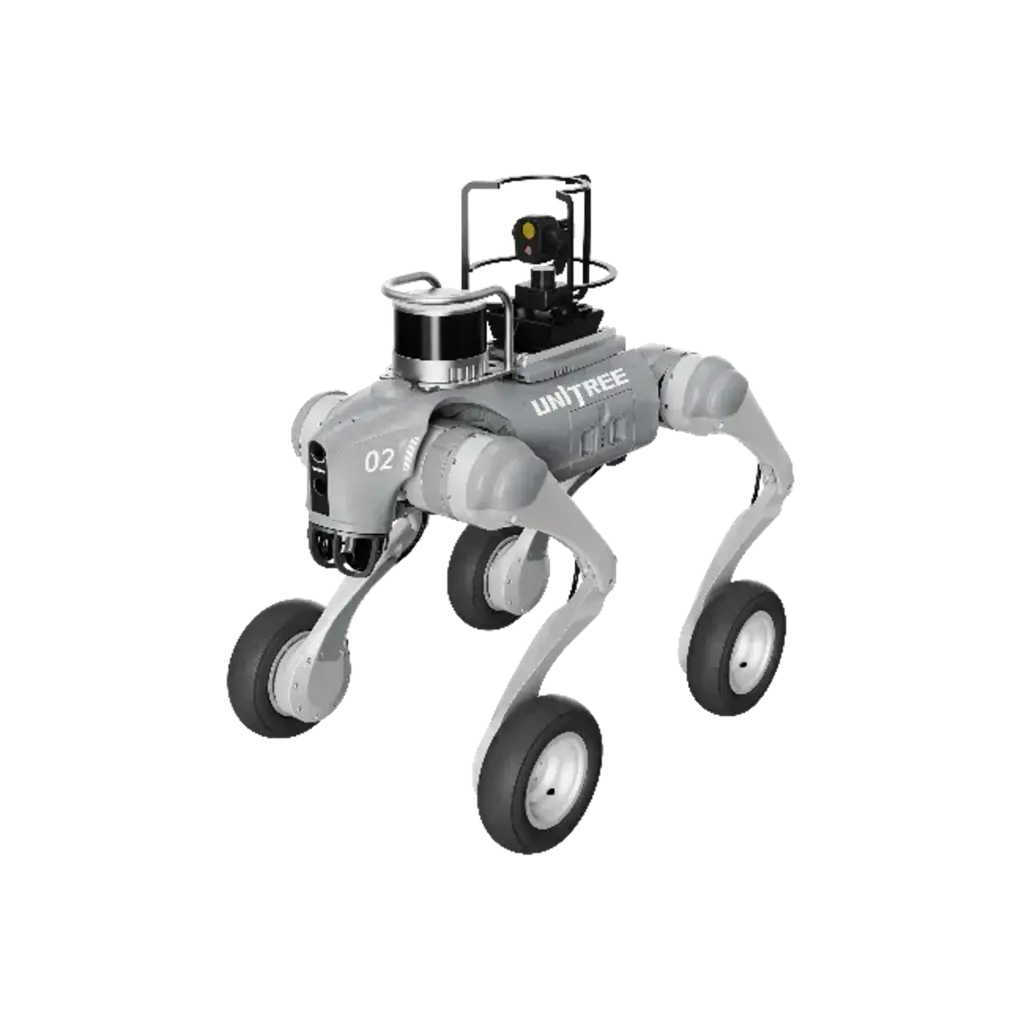

GO2 W education & industry brand unitree

Physical Specifications

• Dimensions: 70cm x 43cm x 50cm (standing)
• Weight: Approximately 18kg (including battery)
• Material: Aluminum Alloy

Performance

• Speed: 0-2.5 m/s
• Max Climb Drop Height: 70cm
• Payload: About 3-5kg

Power and Battery

• Voltage: 33.6V
• Battery: 15,000mAh long-life battery
• Battery life: 2-4 hours of operation

Mobility

• Tires: 7-inch pneumatic tires
• Joint motors: 16 pcs

Computing and Sensors

• Computing Power: NVIDIA Orin NX with 100 TOPS
• 4D Navigation LiDAR: Yes
• Intel RealSense D435i depth camera: Yes

Additional Features

• Optional servo robot arm D1 for object manipulation
• Ability to alternate between rolling and walking modes
• Advanced AI algorithms and technical support
• Open APIs and SDKs for high-level and low-level control
• Supports programming in Python and C++
• Two real-time operating systems: Ubuntu for motion control and Ubuntu-ROS for environmental awareness

Not Included

• Manual Controller: Optional
• The Go2-W is designed for research, industrial applications, and complex terrain navigation, offering a combination of wheeled and legged locomotion for versatility in various environments.
